SK201B+ Digital Oscilloscope Multimeter 2 in 1 SKYCENX with 2.4 Inches Color Screen 1MHz Bandwidth 2.5Msps Sampling Rate
Product details
| Management number | 230821029 | Release Date | 2026/06/18 | List Price | $17.60 | Model Number | 230821029 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

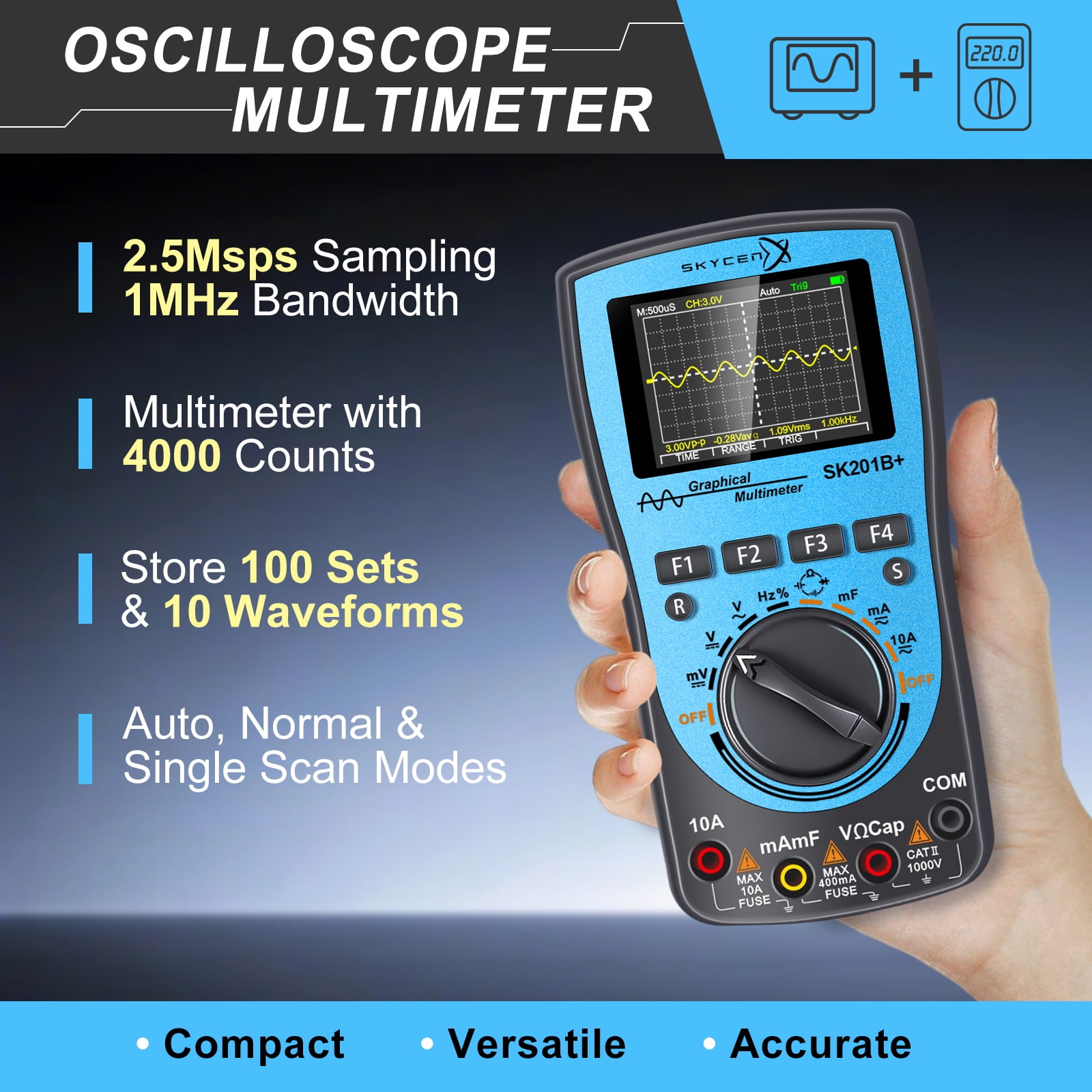

This advanced SK201B+ 2-in-1 Digital Oscilloscope & Multimeter combines precision and versatility for electronics professionals. With a 2.5Msps high-speed sampling rate and 1MHz analog bandwidth (in ACV mode), this device offers accurate measurements and clear waveform visualization. It features a 4000-count digital multimeter with multiple measurement modes, making it suitable for testing DC/AC voltage, current, resistance, capacitance, frequency, duty cycle, and more. The oscilloscope includes three waveform scan modes (Auto, Conventional, and Single) for customizable analysis, along with a data waveform hold function that can store up to 100 data sets and 10 waveforms. The device also supports relative value measurement to eliminate lead resistance and interference signals for more reliable results. The clear 2.4-inch color display ensures easy reading, while overload protection and memory calibration enhance safety and reliability.
- 2.5Msps High-Speed Sampling for precise waveform analysis.
- 1MHz Analog Bandwidth (limited to ACV mode) for clear signal viewing.
- 4000-Count Digital Multimeter for accurate measurements in various functions (DC/AC voltage, current, resistance, capacitance, etc.).
- Three Waveform Scan Modes: Auto, Conventional, and Single for flexible testing.

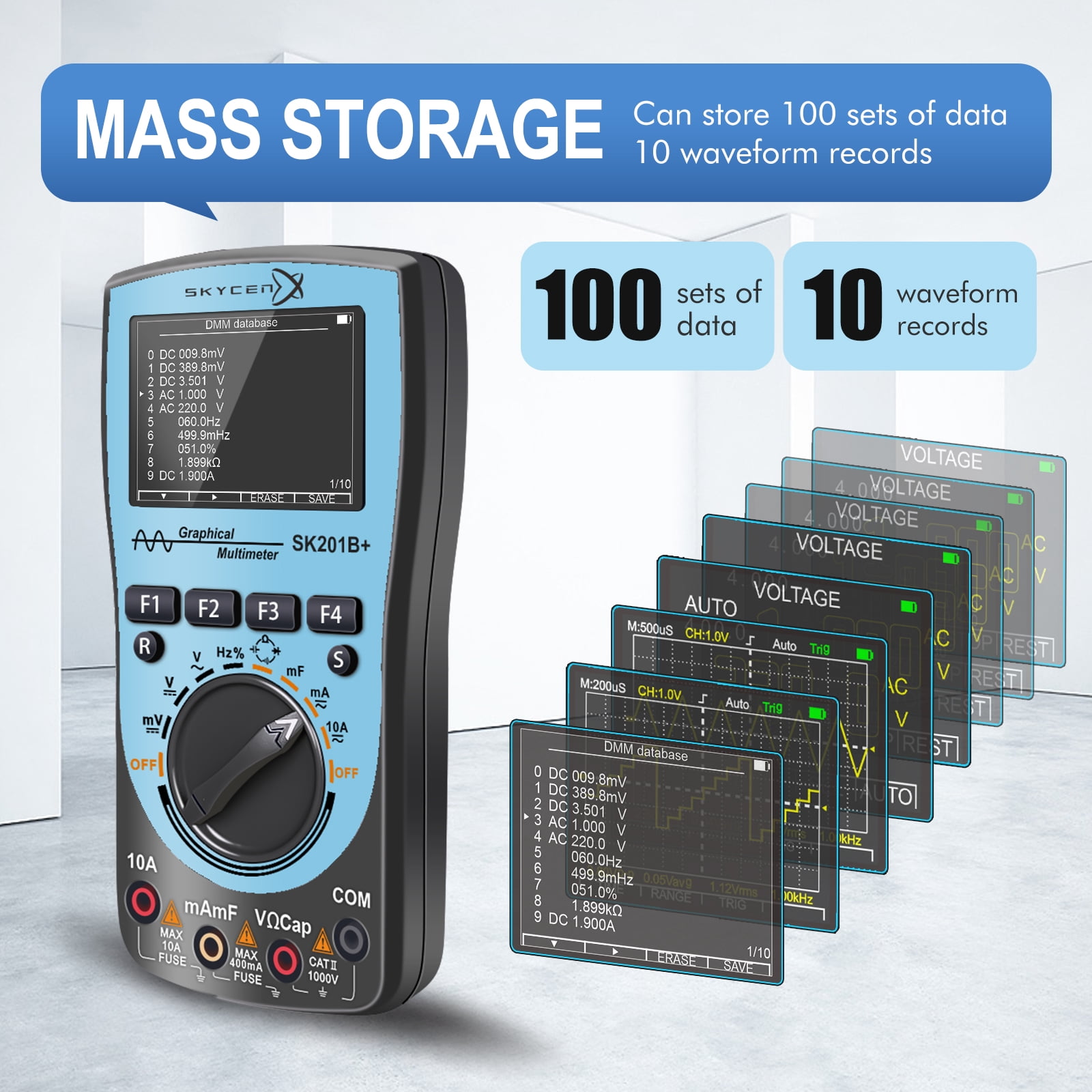

- Data Waveform Hold Function allows storage of 100 data sets and 10 waveforms.

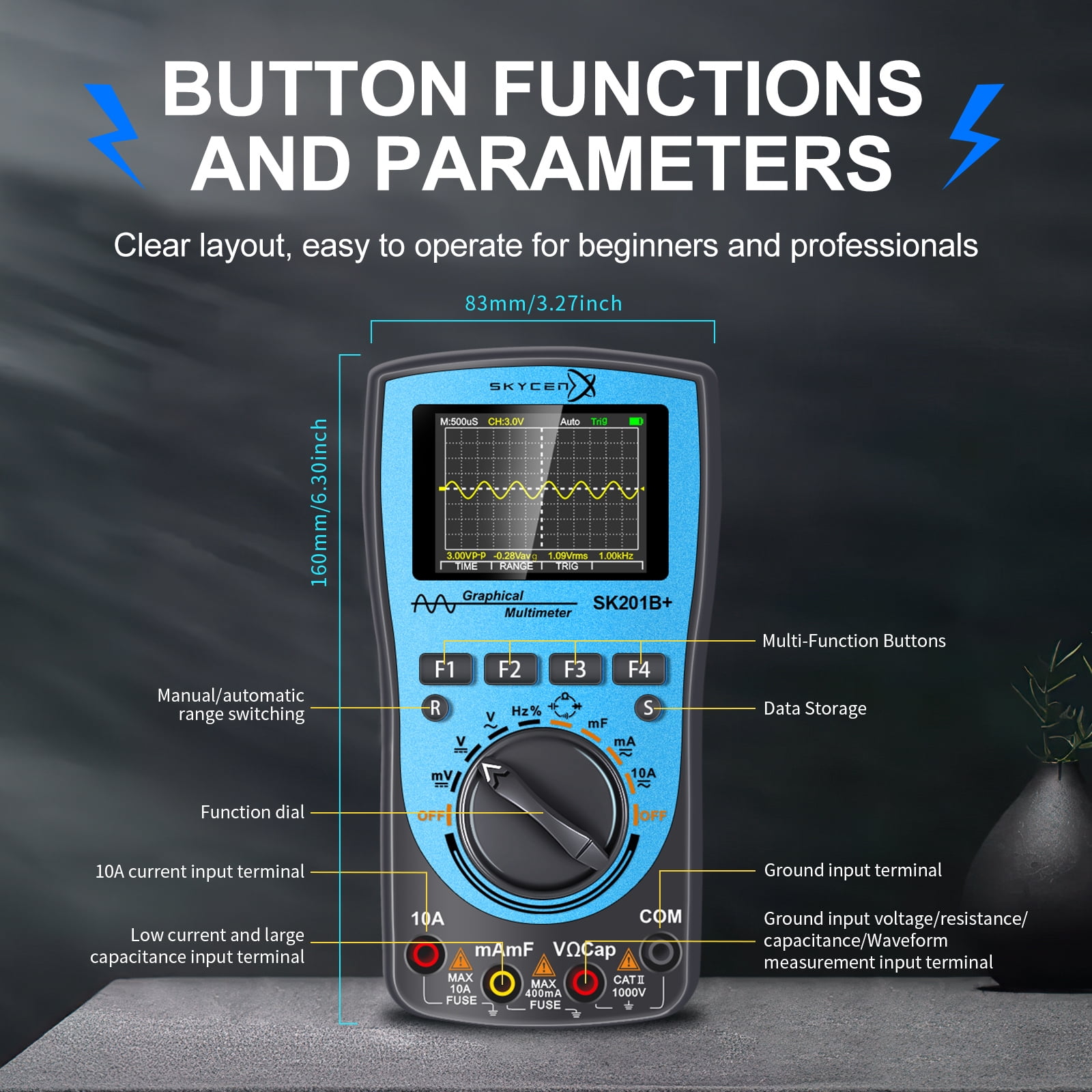

- Customizable Settings: Adjust time base, amplitude, and waveform scan mode during measurement.

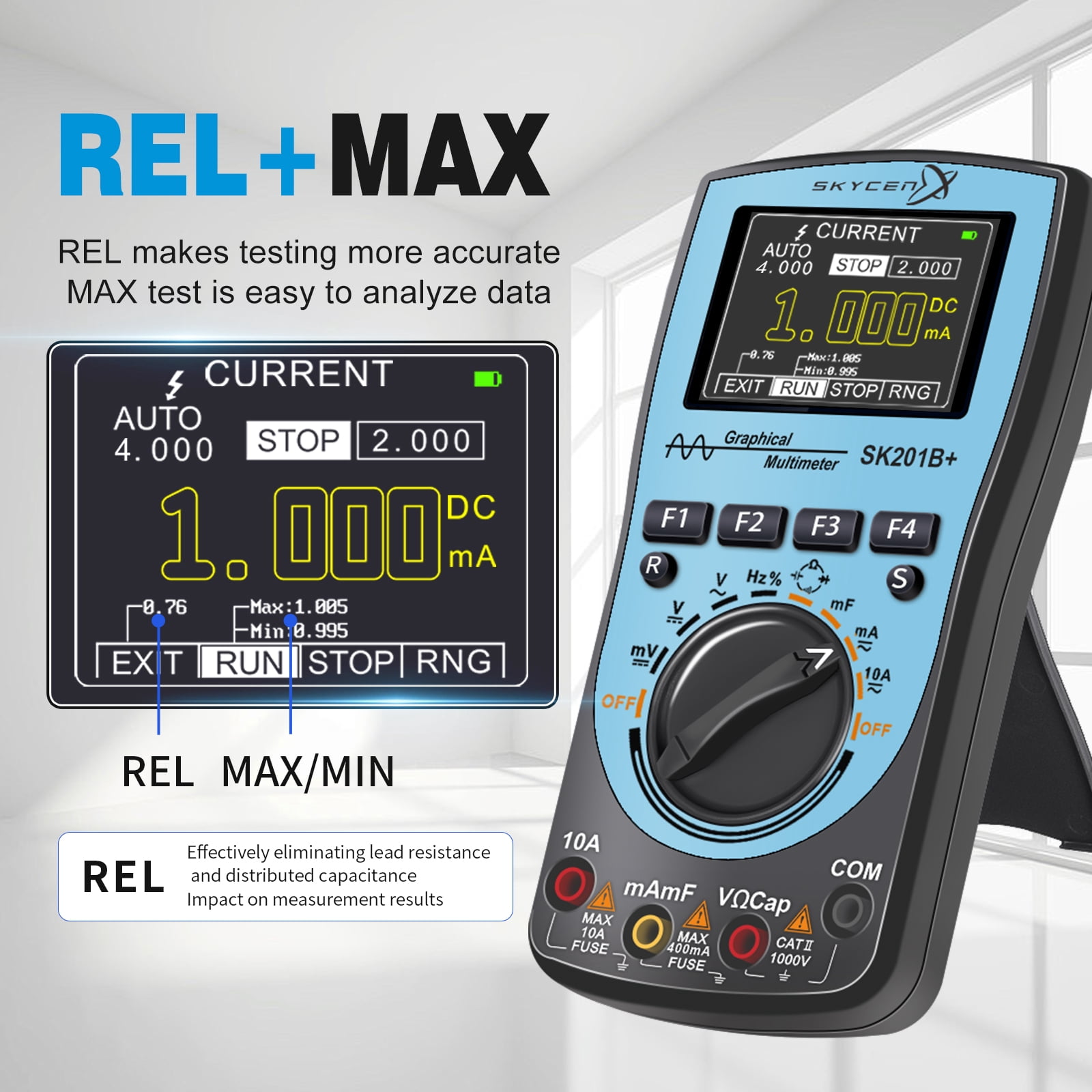

- Relative Value Measurement for eliminating lead resistance and interference.
- Automatic/Manual Range Switching with on-screen data display for real-time and historical data comparison.
- Overload Protection with 500mA and 10A dual fuses for added safety.
- 15-Minute Auto Sleep Function saves energy when not in use.
- 2.4-Inch Color Display for clear visualization of data and waveforms.
- Panel Calibration with internal calibration factor for enhanced reliability without potentiometer adjustments.
| Bandwidth | 1 |
|---|---|
| Sample rate | 2500 kHz |
| Channels | 1 |
| Oscilloscope type | Digital Oscilloscopes |
| Resolution | 240*320 |
| Screen size | 2.4" |
| Features | Accurate Measurement, Adjustable, Digital, Easy To Read, Easy To Use, Flexible, Precision |
| Power type | Battery |
| Display | LCD |
| Brand | Skycenx |
| Accessories | Host x 1, One Pair of Test Leads x 1, Packing box x 1, Cloth bag x1 |
| Height | 6.1" |
| Weight | 0.88 lbs |
| Has written warranty | No |
| Model | SK201B+ |
| Rec. use | Laboratory, Office, Professional |
